Typ GAV

Norm, Beschreibung

AVIT ≈ ISO 8434-1
Baureihe / Series: L = Leicht / S = Schwer

Die wirtschaftlichste Rohranschlussmöglichkeit. Rohranschluss mit 24° Konusanschluss mit metrischem Gewinde nach ISO 8434-1.

Werkstoffe, Oberflächen

Werkstoff, Oberflächen	Bestellcode
Stahl, Mutter verzinkt; NBR	01
Stahl, Mutter verzinkt; FKM	02
Stahl, Mutter phosphatiert; NBR	04
Stahl, Mutter phosphatiert; FKM	05
Edelstahl 1.4571; NBR	41
Edelstahl 1.4571; FKM	42

Dokumentation

Datenblatt GAV

CAD Datenbank

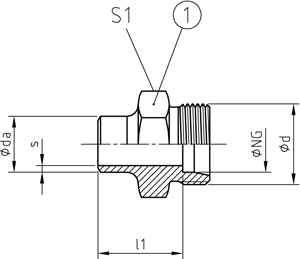

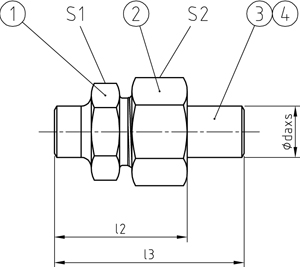

REIHE	PN	NG	NPS	ABMESSUNGEN [mm]							GEWICHT	BESTELLCODE		CAD
SERIES	PN	NG	NPS	DIMENSIONS							WEIGHT	ORDER CODE		DOWNLOAD
	[bar]	[mm]		daxs	d	l1	l2	l3	S1	S2	[kg]	Pos. 1	Pos. 1-4	Pos. 1-4
L	100	15	-	15x1,5	M22x1,5	22	39	59	22	27	0,041	GAV 15x1,5	GAV 15x1,5-daxs
L	160	15	-	15x2,0	M22x1,5	22	39	59	22	27	0,042	GAV 15x2	GAV 15x2-daxs
L	100	18	-	18x1,5	M26x1,5	23,5	43	62	27	32	0,063	GAV 18x1,5	GAV 18x1,5-daxs
L	160	18	-	18x2,0	M26x1,5	23,5	43	62	27	32	0,066	GAV 18x2	GAV 18x2-daxs
L	160	18	-	18x2,5	M26x1,5	23,5	43	62	27	32	0,071	GAV 18x2,5	GAV 18x2,5-daxs
L	160	18	-	18x3,0	M26x1,5	23,5	43	62	27	32	0,074	GAV 18x3	GAV 18x3-daxs
L	100	22	-	22x2,0	M30x2,0	28,5	47	68	32	36	0,095	GAV 22x2	GAV 22x2-daxs
L	160	22	-	22x2,5	M30x2,0	28,5	47	68	32	36	0,101	GAV 22x2,5	GAV 22x2,5-daxs
L	160	22	-	22x3,0	M30x2,0	28,5	47	68	32	36	0,106	GAV 22x3	GAV 22x3-daxs
L	160	22	-	22x4,0	M30x2,0	28,5	47	68	32	36	0,115	GAV 22x4	GAV 22x4-daxs
L	100	28	-	28x2,0	M36x2,0	30,5	50	74	41	41	0,155	GAV 28x2	GAV 28x2-daxs
L	100	28	-	28x2,5	M36x2,0	30,5	50	74	41	41	0,162	GAV 28x2,5	GAV 28x2,5-daxs
L	100	28	-	28x3,0	M36x2,0	30,5	50	74	41	41	0,17	GAV 28x3	GAV 28x3-daxs
L	160	28	-	28x4,0	M36x2,0	30,5	50	74	41	41	0,184	GAV 28x4	GAV 28x4-daxs
L	100	35	-	35x3,0	M45x2,0	33,5	58	85	46	50	0,237	GAV 35x3	GAV 35x3-daxs
L	160	35	-	35x4,0	M45x2,0	33,5	58	85	46	50	0,258	GAV 35x4	GAV 35x4-daxs
L	100	42	-	42x3,0	M52x2,0	35	60	86	55	60	0,312	GAV 42x3	GAV 42x3-daxs
L	160	42	-	42x4,0	M52x2,0	35	60	86	55	60	0,339	GAV 42x4	GAV 42x4-daxs
S	160	10	-	10x1,0	M18x1,5	22,5	40	56	19	22	0,034	GAV 10x1	GAV 10x1-daxs
S	250	10	-	10x1,5	M18x1,5	22,5	40	56	19	22	0,35	GAV 10x1,5	GAV 10x1,5-daxs
S	420	10	-	10x2,0	M18x1,5	22,5	40	56	19	22	0,037	GAV 10x2	GAV 10x2-daxs
S	630	10	-	10x2,5	M18x1,5	22,5	40	56	19	22	0,038	GAV 10x2,5	GAV 10x2,5-daxs
S	160	12	-	12x1,5	M20x1,5	28,5	46	63	22	24	0,048	GAV 12x1,5	GAV 12x1,5-daxs
S	315	12	-	12x2,0	M20x1,5	28,5	46	63	22	24	0,049	GAV 12x2	GAV 12x2-daxs
S	420	12	-	12x2,5	M20x1,5	28,5	46	63	22	24	0,051	GAV 12x2,5	GAV 12x2,5-daxs
S	630	12	-	12x3,0	M20x1,5	28,5	46	63	22	24	0,53	GAV 12x3	GAV 12x3-daxs
S	250	16	¼“	13,5x1,8	M24x1,5	31,5	52	74	27	30	0,079	GAV 16>13,5x1,8	GAV 16>13,5x1,8-daxs
S	315	16	¼“	13,5x2,6	M24x1,5	31,5	52	74	27	30	0,086	GAV 16>13,5x2,6	GAV 16>13,5x2,6-daxs
S	250	16	¼“	13,7x2,2	M24x1,5	31,5	52	74	27	30	0,082	GAV 16>13,7x2,2	GAV 16>13,7x2,2-daxs
S	315	16	¼“	13,7x3,0	M24x1,5	31,5	52	74	27	30	0,086	GAV 16>13,7x3	GAV 16>13,7x3-daxs
S	160	16	-	16x1,5	M24x1,5	31,5	52	74	27	30	0,076	GAV 16x1,5	GAV 16x1,5-daxs
S	250	16	-	16x2,0	M24x1,5	31,5	52	74	27	30	0,079	GAV 16x2	GAV 16x2-daxs
S	315	16	-	16x2,5	M24x1,5	31,5	52	74	27	30	0,084	GAV 16x2,5	GAV 16x2,5-daxs
S	420	16	-	16x3,0	M24x1,5	31,5	52	74	27	30	0,086	GAV 16x3	GAV 16x3-daxs
S	160	20	⅜“	17,2x2,0	M30x2,0	33,5	57	80	32	36	0,132	GAV 20>17,2x2	GAV 20>17,2x2-daxs
S	250	20	⅜“	17,2x2,3	M30x2,0	33,5	57	80	32	36	0,135	GAV 20>17,2x2,3	GAV 20>17,2x2,3-daxs
S	315	20	⅜“	17,2x2,6	M30x2,0	33,5	57	80	32	36	0,137	GAV 20>17,2x2,6	GAV 20>17,2x2,6-daxs
S	420	20	⅜“	17,2x3,2	M30x2,0	33,5	57	80	32	36	0,143	GAV 20>17,2x3,2	GAV 20>17,2x3,2-daxs
S	160	20	-	20x2,0	M30x2,0	33,5	57	80	32	36	0,123	GAV 20x2	GAV 20x2-daxs
S	250	20	-	20x2,5	M30x2,0	33,5	57	80	32	36	0,131	GAV 20x2,5	GAV 20x2,5-daxs
S	315	20	-	20x3,0	M30x2,0	33,5	57	80	32	36	0,137	GAV 20x3	GAV 20x3-daxs
S	420	20	-	20x4,0	M30x2,0	33,5	57	80	32	36	0,145	GAV 20x4	GAV 20x4-daxs
S	160	25	½“	21,3x2,0	M36x2,0	38	65	93	41	46	0,226	GAV 25>21,3x2	GAV 25>21,3x2-daxs
S	250	25	½“	21,3x2,6	M36x2,0	38	65	93	41	46	0,235	GAV 25>21,3x2,6	GAV 25>21,3x2,6-daxs
S	250	25	½“	21,3x2,9	M36x2,0	38	65	93	41	46	0,239	GAV 25>21,3x2,9	GAV 25>21,3x2,9-daxs
S	315	25	½“	21,3x3,7	M36x2,0	38	65	93	41	46	0,248	GAV 25>21,3x3,7	GAV 25>21,3x3,7-daxs
S	160	25	-	25x2,5	M36x2,0	38	65	93	41	46	0,222	GAV 25x2,5	GAV 25x2,5-daxs
S	250	25	-	25x3,0	M36x2,0	38	65	93	41	46	0,231	GAV 25x3	GAV 25x3-daxs
S	315	25	-	25x4,0	M36x2,0	38	65	93	41	46	0,246	GAV 25x4	GAV 25x4-daxs
S	420	25	-	25x5,0	M36x2,0	38	65	93	41	46	0,26	GAV 25x5	GAV 25x5-daxs
S	160	30	¾“	26,7x2,9	M42x2,0	39,5	69	98	46	50	0,307	GAV 30>26,7x2,9	GAV 30>26,7x2,9-daxs
S	315	30	¾“	26,7x3,9	M42x2,0	39,5	69	98	46	50	0,307	GAV 30>26,7x3,9	GAV 30>26,7x3,9-daxs
S	160	30	¾“	26,9x 2,3	M42x2,0	39,5	69	98	46	50	0,297	GAV 30>26,9x2,3	GAV 30>26,9x2,3-daxs
S	250	30	¾“	26,9x3,2	M42x2,0	39,5	69	98	46	50	0,32	GAV 30>26,9x3,2	GAV 30>26,9x3,2-daxs
S	160	30	-	30x3,0	M42x2,0	39,5	69	98	46	50	0,297	GAV 30x3	GAV 30x3-daxs
S	250	30	-	30x4,0	M42x2,0	39,5	69	98	46	50	0,318	GAV 30x4	GAV 30x4-daxs
S	315	30	-	30x5,0	M42x2,0	39,5	69	98	46	50	0,338	GAV 30x5	GAV 30x5-daxs
S	420	30	-	30x6,0	M42x2,0	39,5	69	98	46	50	0,352	GAV 30x6	GAV 30x6-daxs
S	160	38	1“	33,4x2,6	M52x2,0	44	77	109	55	60	0,48	GAV 38>33,4x2,6	GAV 38>33,4x2,6-daxs
S	250	38	1“	33,4x4,0	M52x2,0	44	77	109	55	60	0,515	GAV 38>33,4x4	GAV 38>33,4x4-daxs
S	160	38	1“	33,7x2,6	M52x2,0	44	77	109	55	60	0,478	GAV 38>33,7x2,6	GAV 38>33,7x2,6-daxs
S	250	38	1“	33,7x4,0	M52x2,0	44	77	109	55	60	0,525	GAV 38>33,7x4	GAV 38>33,7x4-daxs
S	160	38	-	38x4,0	M52x2,0	44	77	109	55	60	0,5	GAV 38x4	GAV 38x4-daxs
S	250	38	-	38x5,0	M52x2,0	44	77	109	55	60	0,52	GAV 38x5	GAV 38x5-daxs
S	315	38	-	38x6,0	M52x2,0	44	77	109	55	60	0,545	GAV 38x6	GAV 38x6-daxs
S	420	38	-	38x8,0	M52x2,0	44	77	109	55	60	0,59	GAV 38x8	GAV 38x8-daxs
S	160	50	1½“	48,3x2,6	M68x2,0	49	90	119	70	80	0,888	GAV 50>48,3x2,6	GAV 50>48,3x2,6-daxs
S	160	50	1½“	48,3x4,0	M68x2,0	49	90	119	70	80	0,91	GAV 50>48,3x4	GAV 50>48,3x4-daxs
S	250	50	1½“	48,3x6,3	M68x2,0	49	90	119	70	80	0,97	GAV 50>48,3x6,3	GAV 50>48,3x6,3-daxs
S	315	50	1½“	48,3x8,0	M68x2,0	49	90	119	70	80	1,031	GAV 50>48,3x8	GAV 50>48,3x8-daxs
S	160	50	-	50x5,0	M68x2,0	49	90	119	70	80	0,9	GAV 50x5	GAV 50x5-daxs
S	250	50	-	50x6,0	M68x2,0	49	90	119	70	80	0,945	GAV 50x6	GAV 50x6-daxs
S	315	50	-	50x8,0	M68x2,0	49	90	119	70	80	0,958	GAV 50x8	GAV 50x8-daxs
S	400	50	-	50 x10,0	M68x2,0	49	90	119	70	80	1,108	GAV 50x10	GAV 50x10-daxs
