Gerade Schottverschraubung

Typ GSV

AVIT, ISO 8434-1 – BHS
Baureihe: S = Schwer

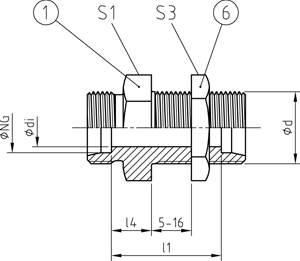

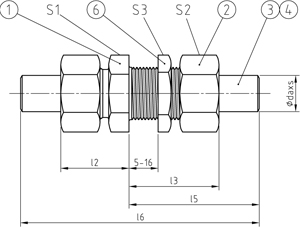

Schottstutzen mit beidseitigem 24° Konusanschluss mit metrischem Gewinde nach ISO 8434-1. Schottdicke 5 – 16 mm.

Werkstoff, Oberflächen Bestellcode
Stahl, verzinkt; NBR 01
Stahl, verzinkt; FKM 02
Stahl, phosphatiert; NBR 04
Stahl, phosphatiert; FKM 05
Edelstahl 1.4571; NBR 41
Edelstahl 1.4571; FKM 42
REIHEPNNGABMESSUNGEN [mm]GEWICHTBESTELLCODECAD
SERIESDIMENSIONSWEIGHTORDER CODEDOWNLOAD
[bar][mm]ddil1l2l3l4l5l6S1S2S3[kg]Pos. 1+6Pos. 1-4
L42010M16x1,583826441061,5104,52219220,145GSV 10GSV 10 daxs
L42012M18x1,5103926,545,51062,5106,52422240,185GSV 12GSV 12 daxs
L42015M22x1,5124329,548,51268116,52727300,355GSV 15GSV 15 daxs
L25018M26x1,5154632,551,513,571,5123,53232360,345GSV 18GSV 18 daxs
L25022M30x2,01951355316,574129,53636360,545GSV 22GSV 22 daxs
L25028M36x2,02454385518,578,51404141460,775GSV 28GSV 28 daxs
L25035M45x2,03055436118,587,51575550551,221GSV 35GSV 35 daxs
L25042M52x2,0365543,560,519871576060651,725GSV 42GSV 42 daxs
S80010M18x1,5744324714,563111,52424240,122GSV 10GSV 10 daxs
S63012M20x1,584532,548,514,564,5113,52727270,15GSV 12GSV 12 daxs
S63016M24x1,51248375216,573,5132,53232320,214GSV 16GSV 16 daxs
S42020M30x2,0155141,55717,580144,54136410,383GSV 20GSV 20 daxs
S42025M36x2,0195547622089,51644646460,554GSV 25GSV 25 daxs
S42030M42x2,02459506621,595,51755050500,734GSV 30GSV 30 daxs
S42038M52x2,0325954,570221021896565651,18GSV 38GSV 38 daxs
S42050M68x2,0386465,578,526107,52027580801,95GSV 50GSV 50 daxs
