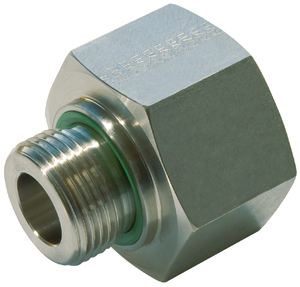

Reduzierstutzen mit U-Ring Dichtung

Typ RI

Norm, Beschreibung

AVIT
BAUREIHE: S = Schwer

Einschraubzapfen mit U-Ring Dichtung (ED) und zylindrischem Whitworth Rohrgewinde nach ISO 1179-2 (Typ RI) oder metrischem Gewinde nach ISO 9974-2 (Typ RIM)

Werkstoffe, Oberflächen

Werkstoff, Oberflächen Bestellcode
Stahl, verzinkt; NBR 01
Stahl, verzinkt; FKM 02
Stahl, phosphatiert; NBR 04
Stahl, phosphatiert; FKM 05
Edelstahl 1.4571; NBR 41
Edelstahl 1.4571; FKM 42

Optionen, Varianten

Metrisches Gewinde (zylindrisch) TYP M NG

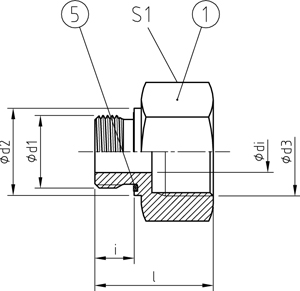

PNNGABMESSUNGEN [mm]U-RINGGEWICHTBESTELLCODECAD
DIMENSIONSWEIGHTORDER CODEDOWNLOAD
[bar][mm]d1d3did2ilS1FormPos.5[kg]TYP d1 - d3
8006G 1/8 AG 1/4413,983119G8,4x11,9x1,00,041RI 1/8 - 1/4
8006G 1/8 AG 3/8413,983224G8,4x11,9x1,10,065RI 1/8 - 3/8
80010G 1/4 AG 1/8518,9122919G11,6x16,5x1,50,043RI 1/4 - 1/8
80010G 1/4 AG 3/8518,9123624G11,6x16,5x1,60,072RI 1/4 - 3/8
80010G 1/4 AG 1/2518,9124030G11,6x16,5x1,70,124RI 1/4 - 1/2
80010G 1/4 AG 3/4518,9124336G11,6x16,5x1,80,181RI 1/4 - 3/4
63012G 3/8 AG 1/8-21,9122222K14,7x18,9x1,50,039RI 3/8 - 1/8
63012G 3/8 AG 1/4821,9123622G14,7x18,9x1,60,074RI 3/8 - 1/4
63012G 3/8 AG 1/2821,9124130G14,7x18,9x1,70,133RI 3/8 - 1/2
63012G 3/8 AG 3/4821,9124436G14,7x18,9x1,80,189RI 3/8 - 3/4
63012G 3/8 AG 1821,9124941G14,7x18,9x1,90,259RI 3/8 - 1
63016G 1/2 AG 1/4-26,9142727K18,5x23,9x1,50,072RI 1/2 - 1/4
63016G 1/2 AG 3/81226,9143627G18,5x23,9x1,60,098RI 1/2 - 3/8
63016G 1/2 AG 3/41226,9144636G18,5x23,9x1,70,198RI 1/2 - 3/4
63016G 1/2 AG 11226,9144941G18,5x23,9x1,80,248RI 1/2 - 1
63016G 1/2 AG 1 1/41226,9145355G18,5x23,9x1,90,509RI 1/2 - 1 1/4
42020G 3/4 AG 1/4-31,9163132K23,9x29,2x1,50,137RI 3/4 - 1/4
42020G 3/4 AG 3/8-31,9163132K23,9x29,2x1,60,12RI 3/4 - 3/8
42020G 3/4 AG 1/21531,9164132G23,9x29,2x1,70,16RI 3/4 - 1/2
42020G 3/4 AG 11531,9165141G23,9x29,2x1,80,267RI 3/4 - 1
42020G 3/4 AG 1 1/41531,9165555G23,9x29,2x1,90,528RI 3/4 - 1 1/4
42020G 3/4 AG 1 1/21531,9165760G23,9x29,2x1,100,671RI 3/4 - 1 1/2
42025G 1 AG 1/4-39,9183541K29,7x35,7x2,00,266RI 1 - 1/4
42025G 1 AG 3/8-39,9183541K29,7x35,7x2,10,246RI 1 - 3/8
42025G 1 AG 1/2-39,9183541K29,7x35,7x2,20,219RI 1 - 1/2
42025G 1 AG 3/41939,9184741G29,7x35,7x2,30,296RI 1 - 3/4
42025G 1 AG 1 1/41939,9185755G29,7x35,7x2,40,549RI 1 - 1 1/4
42025G 1 AG 1 1/21939,9186060G29,7x35,7x2,50,66RI 1 - 1 1/2
42030G 1 1/4 AG 1/4-49,9203850K38,8x45,8x2,00,464RI 1 1/4 - 1/4
42030G 1 1/4 AG 3/8-49,9203850K38,8x45,8x2,10,442RI 1 1/4 - 3/8
42030G 1 1/4 AG 1/2-49,9203850K38,8x45,8x2,20,413RI 1 1/4 - 1/2
42030G 1 1/4 AG 3/4-49,9203850K38,8x45,8x2,30,358RI 1 1/4 - 3/4
42030G 1 1/4 AG 12449,9205250G38,8x45,8x2,40,491RI 1 1/4 - 1
42030G 1 1/4 AG 1 1/22449,9206060G38,8x45,8x2,50,594RI 1 1/4 - 1 1/2
42038G 1 1/2 AG 1/2-54,9224255K44,7x50,7x2,00,596RI 1 1/2 - 1/2
42038G 1 1/2 AG 3/4-54,9224255K44,7x50,7x2,10,539RI 1 1/2 - 3/4
42038G 1 1/2 AG 1-54,9224255K44,7x50,7x2,20,448RI 1 1/2 - 1
42038G 1 1/2 AG 1 1/43054,9225855G44,7x50,7x2,30,59RI 1 1/2 - 1 1/4
42050G 2AG 3/4-69,9244870K56,1x62,7x2,51,103RI 2 - 3/4
42050G 2AG 1-69,9244870K56,1x62,7x2,61,002RI 2 - 1
42050G 2AG 1 1/4-69,9244870K56,1x62,7x2,70,821RI 2 - 1 1/4
42050G 2AG 1 1/24069,9246270G56,1x62,7x2,81,057RI 2 - 1 1/2
