24° Verschlusskegel

Typ VK

AVIT, ISO 8434-1 – PL
BAUREIHE: L = Leicht / S = Schwer

Auch mit Messanschluss G 1/4“ lieferbar (Typ MAK)

Werkstoff, Oberflächen Bestellcode
Stahl, verzinkt; NBR 01
Stahl, verzinkt; FKM 02
Stahl, phosphatiert; NBR 04
Stahl, phosphatiert; FKM 05
Edelstahl 1.4571; NBR 41
Edelstahl 1.4571; FKM 42
REIHEPNNGABMESSUNGEN [mm]O-RINGGEWICHTBESTELLCODECAD
SERIESDIMENSIONSWEIGHTORDER CODEDOWNLOAD

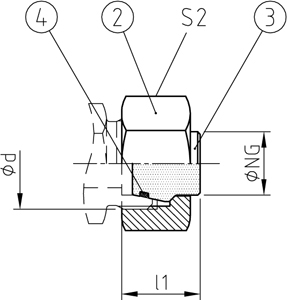

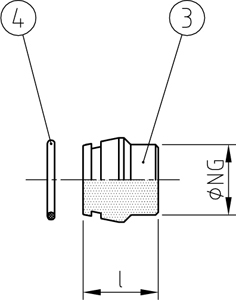

[bar][mm]dll1S2Pos. 4VK [kg]VKM [kg]Pos. 3+4Pos. 2-4
L50010M16x1,51820197,5x1,50,0140,032VK 10 LVKM 10 L
L25012M18x1,51921229,0x1,50,0210,048VK 12 LVKM 12 L
L42015M22x1,520212712,0x2,00,0320,072VK 15VKM 15
L42018M26x1,520223215,0x2,00,0460,112VK 18VKM 18
L25022M30x2,020223620,0x2,00,0640,144VK 22VKM 22
L25028M36x2,02122,54126,0x2,00,1130,208VK 28VKM 28
L25035M45x2,02426,55032,0x2,50,2210,359VK 35VKM 35
L25042M52x2,024276038,0x2,50,3210,54VK 42VKM 42
S8006M14x1,51517175,0x1,50,0040,021VK 06VKM 06
S8008M16x1,51517196,0x1,50,0070,026VK 08VKM 08
S80010M18x1,51820227,5x1,50,0140,042VK 10VKM 10
S63012M20x1,51921249,0x1,50,020,053VK 12VKM 12
S63016M24x1,520233012,0x2,00,0360,101VK 16VKM 16
S42020M30x2,02326,53616,3x2,40,0640,164VK 20VKM 20
S42025M36x2,026304620,3x2,40,1020,299VK 25VKM 25
S42030M42x2,02631,55025,3x2,40,1560,371VK 30VKM 30
S42038M52x2,027356033,3x2,40,2620,578VK 38VKM 38
S42050M68x2,034428046,0x3,00,4921,246VK 50VKM 50
